Built-in 12dBi 2×2 dual-polarized directional MIMO antenna. Adjustable transmission power from 0 to 30dBm/1000mw. System-level optimizations for more than 13km long-range wireless transmission
Brand : | TP-Link |
Type : | Outdoor CPE |
Model Number : | CPE220 |
Version : | 3.0 |
Processor : | Qualcomm Atheros 560MHz CPU, MIPS 24Kc |
Memory : | 64MB DDR2 RAM, 8MB Flash |

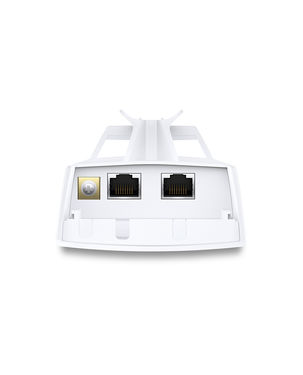

Interface : | 1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in), 1 10/100Mbps Shielded Ethernet Port (LAN1), 1 Grounding Terminal, 1 Reset Button |
Power Supply : | Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins), Voltage range: 16-27VDC |
Power Consumption : | 10.8 Watts Max, Note: When deployed using Passive PoE, the power drawn from the power source will, be higher by some amount depending on the length of the connecting cable. |
Dimensions ( W x D x H ) : | 11×3.1×2.1 inch (276×79×60 mm) |
Antenna Type : | Built-in 12dBi 2x2 Dual-polarized Directional Antenna, Beam Width: 60° (H-Plane) / 30° (E-Plane) Note: For more details, please refer to datasheet |
Protection : | 15KV ESD Protection, 6KV Lightning Protection |
Enclosure : | Outdoor ASA stabilized plastic material, IPX5 waterproof Certification |
Wireless Standards : | IEEE 802.11b/g/n (with Pharos MAXtream disabled) |
Proprietary Protocol : | TDMA Mode (with Pharos MAXtream enabled) |
Wireless Speeds : | Up to 300Mbps (40MHz,Dynamic), Up to 144.4Mbps (20MHz,Dynamic), Up to 72.2Mbps (10MHz,Dynamic), Up to 36.1Mbps (5MHz,Dynamic) |
Frequency : | 2.4~2.483GHz Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used. |
Transmission Power : | 30dBm/1000mw (Adjustable power by 1dBm) Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used. |
Wireless Configurations : | Pharos MAXtream TDMA Technology, 802.11b/g/n Modes, Selectable Channel Width: 5/10/20/40MHz, Automatic Channel Selection, Transmission Power Control, Dynamic Frequency Selection (DFS), WDS Enable/Disable, Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption, SSID Broadcast Enable/Disable, Multi-SSID with VLAN Tagging (AP mode only), Distance/ACK Timeout Setting, Wireless MAC Address Filter, Wireless Advanced:> Beacon Interval/RTS Threshold/Fragmentation, >Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia |
Management : | Discovery and Remote Management via Pharos Control application, HTTP/HTTPS Web-based management, System Log, SNMP Agent(v2c), Ping Watch Dog, Dynamic DDNS, SSH Server |
System Tools : | Wireless Signal Quality Indicators:Signal Strength/Noise/Transmit CCQ/CPU/Memory, Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP, Spectrum Analyzer, Speed Test, Ping, Traceroute |
System-level Optimizations : | Optimized IGMP Snooping/Proxy for multicast applications, Hardware watch dog |
Dimensions(W x D x H) : | 85.8×43.9×31.9 mm |
Button : | Remote Reset Button |
Power Status LEDs : | Green |
Input : | 100-240VAC, 50/60Hz |
Output : | 24VDC, 0.5A Max, +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet) |
Efficiency : | >80% |
Environment : | Operating Temperature: -40℃~70℃ (-40℉~158℉), Storage Temperature: -40℃~70℃ (-40℉~158℉), Operating Humidity: 10%~90% non-condensing, Storage Humidity: 5%~95% non-condensing |
Product Id : | CPE220 |
