Home Smart Cameras Ezviz Smart Cameras Ezviz 2MP Pan & Tilt Wi-Fi Camera H8C
Brand: | Ezviz |
Type: | Smart Camera |
Model: | CS-H8C-2MP |
Image Sensor: | 1/2.7inch Progressive Scan CMOS |
Shutter Speed: | Self-adaptive shutter |
Lens: | 4mm @ F2.0, viewing angle: 46° (Vertical), 89° (Horizontal), 104° (Diagonal) 6mm @ F2.0, viewing angle: 28° (Vertical), 52° (Horizontal), 60° (Diagonal) |

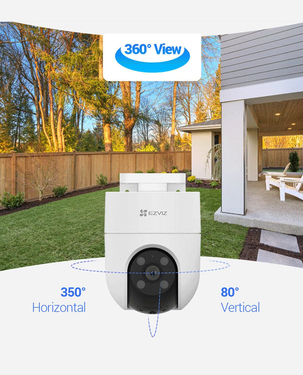

PT Angle: | Pan: 350°, Tilt: 80° |
Minimum Illumination: | 0.5 Lux @ (F1.6, AGC ON), 0 Lux with IR (Data is obtained from EZVIZ laboratories) |
Lens Mount: | M12 |
Day & Night: | IR-Cut filter with auto-switching |
DNR: | 3D DNR |
WDR: | Digital WDR |
Night Vision Distance: | 30 m / 98 ft |
Max. Resolution: | 1920 × 1080 |
Frame Rate: | Max: 30fps; Self-Adaptive during network transmission |
Video Compression: | H.265 / H.264 |
H.265 Type: | Main Profile |
Video Bit Rate: | Full HD; Hi-Def; Standard. Adaptive bit rate. |
Audio Bit Rate: | Self-Adaptive |
Max. Bitrate: | 2 Mbps |
Wi-Fi Standard: | IEEE802.11b, 802.11g, 802.11n |
Frequency Range: | 2.4 GHz ~ 2.4835 GHz |
Channel Bandwidth: | Supports 20 MHz |
Transmission Rate: | 11b: 11 Mbps,11g: 54 Mbps,11n: 72 Mbps |
Wi-Fi Pairing: | AP pairing |
Protocol: | EZVIZ Cloud Proprietary Protocol |
Interface Protocol: | EZVIZ Cloud Proprietary Protocol |
Wired Network: | RJ45 × 1 (10M / 100M Adaptive Ethernet Port) |
Local Storage: | MicroSD card slot (Up to 512GB) |
Cloud Storage: | EZVIZ Cloud Storage (Subscription Required) |
Smart Alarm: | AI-Powered Human Shape Detection |
Customized Alert Area: | Supports |
Two-way Talk: | Supports |
General Function: | Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark |
Operating Conditions: | -30 °C to 50°C ( -22 °F to 122 °F ), humidity 95% or less (non-condensing) |
IP Grade: | Weatherproof Design |
Power Supply: | DC 12V / 1A |
Power Consumption: | MAX. 12W |
Dimensions: | Dimensions |
Net Weight: | 420 g (14.8 oz) |
Box Content: | Charger and Screw |
Product Id: | 104101294 |
